Low Compression Stress Thermal GAP PAD Materials For New Energy Vehicle Power Systems

Productdetails:

Plaats van herkomst:	China
Merknaam:	Ziitek
Certificering:	UL & RoHS
Modelnummer:	TIF500-30-05U

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1000 stuks
Prijs:	0.1-10 USD/PCS
Verpakking Details:	241312cm Kartons
Levertijd:	3-5 werkdagen
Betalingscondities:	T/T
Levering vermogen:	1000000 pc's/maand

Contact

Gedetailleerde productomschrijving

Naam van producten:	Thermische GAP PAD-materialen met lage compressiespanning voor nieuwe energievoertuigen	Trefwoorden:	Thermische GAP PAD-materialen
Thermische geleidbaarheid:	3.0W/m-k	Dikte bereik:	0,25~5,0 mm /(0,010~0,20 inch)
kleur:	Blauw	Hardheid:	65 Kust 00
Dikte:	30,0 g/cm3	Sollicitatie:	Nieuwe energievoertuigvoedingssystemen

Low Compression Stress Thermal GAP PAD Materials For New Energy Vehicle Power Systems

Products Description

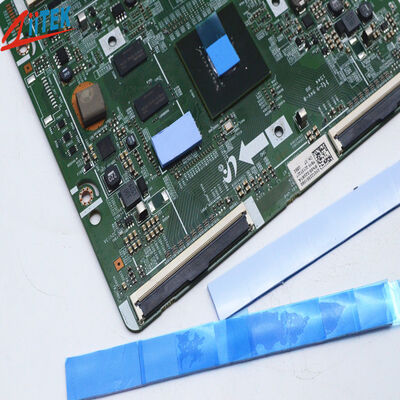

TIF^®500-30-05U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-level softness,achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces,and the susceptibility of precision components to mechanical damage in high-precision assemblies.

Features:

> High thermal conductivity
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

Applications:

> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems

Typical Properties of TIF^®500-30-05U Series
Property	Value		Test method
Color	Blue		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.0		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.5)	(0.75~5.0)
Hardness	65 Shore 00	27 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	7.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	3.0 W/m-K		ASTM D5470
	3.0 W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"× 16" (406 mm×406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

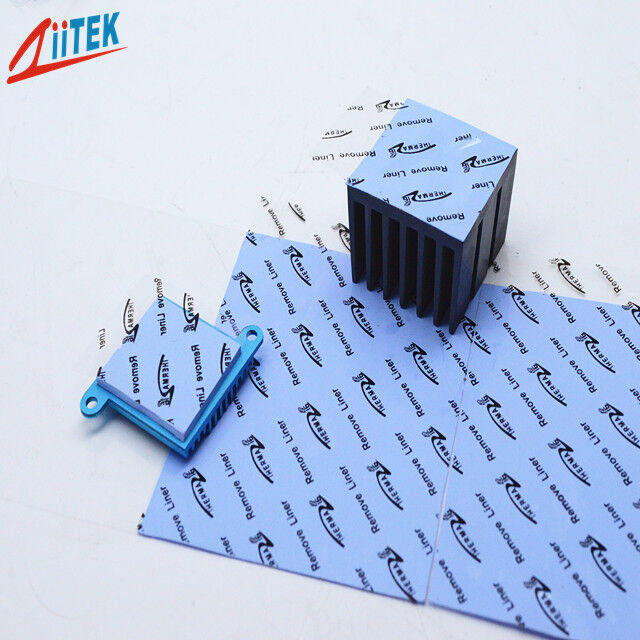

Low Compression Stress Thermal GAP PAD Materials For New Energy Vehicle Power Systems 0

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: What thermal conductivity test method was used to achieve the values given on the data sheets?

A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.

Q: Is GAP PAD offered with an adhesive?

A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
