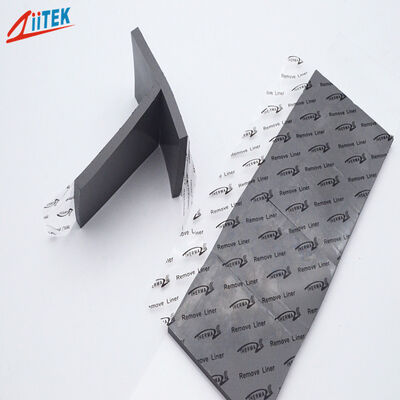

High Quality Customized Silicone Thermal Pad LED CPU GPU MOS Dissipate Heat Thermal Gap Filler Insulation Sheet

High Quality Customized Silicone Thermal Pad LED CPU GPU MOS Dissipate Heat Thermal Gap Filler Insulation Sheet

Productdetails:
Plaats van herkomst: China
Merknaam: Ziitek
Certificering: UL
Modelnummer: TIF100-50-11E
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1000 stuks
Prijs: 0.1-10 USD/PCS
Verpakking Details: 24*13*12cm doos
Levertijd: 3-8 werkdagen
Betalingscondities: T/T
Levering vermogen: 3000*2000*300mm
Contact
Gedetailleerde productomschrijving
Producten Naam: Hoge kwaliteit op maat gemaakte siliconen thermische pad LED CPU GPU MOS Verdrijven warmte Thermisch Hardheid: 65/35 wal00
Trefwoorden: Thermisch pad Kleur: Donkergrijs
Materiaal: Keramisch gevulde siliciummateriaal thermische geleidend: 5,0 W/mK
Dikte: 0,010 "(0,25 mm) ~ 0,200" (5,0 mm) Dikte: 3,4 g/cm³
Sollicitatie: LED CPU GPU MOS voert warmte af

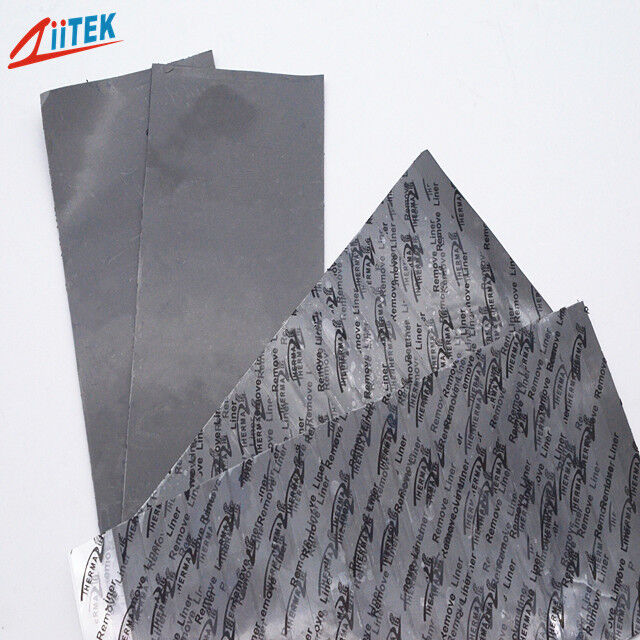

High Quality Customized Silicone Thermal Pad LED CPU GPU MOS Dissipate Heat Thermal Gap Filler Insulation Sheet


Company Profile



Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!


The TIF®100-50-11E Series is awell-balanced,general-purpose thermalpad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use,making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.



Features

> Good thermal conductive 1.8W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Broad range of hardnesses available
> Outstanding thermal performance
> High tack surface reduces contact resistance

Applications


> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems



Typical Properties of TIF®100-50-11E Series
Property Value Test method
Color Dark gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.4 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness 65 Shore 00 35 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant @1MHz 6.0 ASTM D150
Volume Resistivity(Ohm-meter) >1.0X1012  ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity(W/m-K) 5.0  ASTM D5470
5.0 ISO22007



Product Specifications


Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)



Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

High Quality Customized Silicone Thermal Pad LED CPU GPU MOS Dissipate Heat Thermal Gap Filler Insulation Sheet 0

Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.


FAQ



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online



Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.



Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information.
