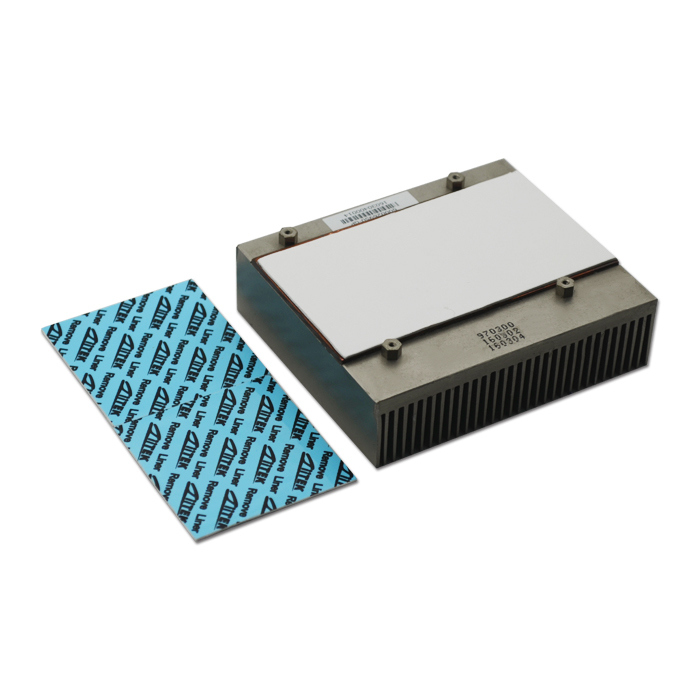

Ultra Soft Silicone Thermal Gap Filler Used In Chassis Or Other Heat Dissipation Components

Ultra Soft Silicone Thermal Gap Filler Used In Chassis Or Other Heat Dissipation Components

Productdetails:
Plaats van herkomst: CHINA
Merknaam: Ziitek
Certificering: UL & RoHS
Modelnummer: TIF100-06U-serie
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1000 pccs
Prijs: 0.1-10 USD/PCS
Verpakking Details: 24*13*12cm Kartons
Levertijd: 3-5 werkdagen
Betalingscondities: T/t
Levering vermogen: 1000000 pc's/maand
Contact
Gedetailleerde productomschrijving
Productennaam: Ultrazachte thermische siliconenvuller gebruikt in chassis of andere componenten voor warmteafvoer Trefwoorden: Silikon-thermische gatenvuller
Steekproef: Monster gratis Kleur: Wit
Brandweer: 94 v0 Diktebereik: 0,020 "~ 0,200" (0,5 mm ~ 5,0 mm)
Diëlektrische afbraakspanning: > 5500 Vac Diëlektrische constante: 3,5 MHz
Thermische geleidbaarheid: 1,5 W/m-K Sollicitatie: Componenten Warmteafvoer

Ultra Soft Silicone Thermal Gap Filler Used In Chassis Or Other Heat Dissipation Components



Company Profile



Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.



Ziitek TIF®100-06U Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.



Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power

> Routers
> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)



Typical Properties of TIF®100-06U Series
Property Value Test method
Color White ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(5.0mm) ASTM D374
Specific Gravity 2.2g/cc ASTM D297
Hardness 27 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 3.5 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470


Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

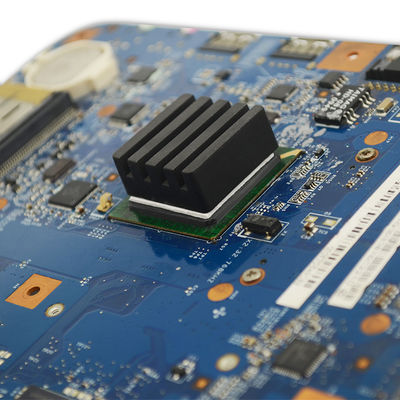

Ultra Soft Silicone Thermal Gap Filler Used In Chassis Or Other Heat Dissipation Components 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.



Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
